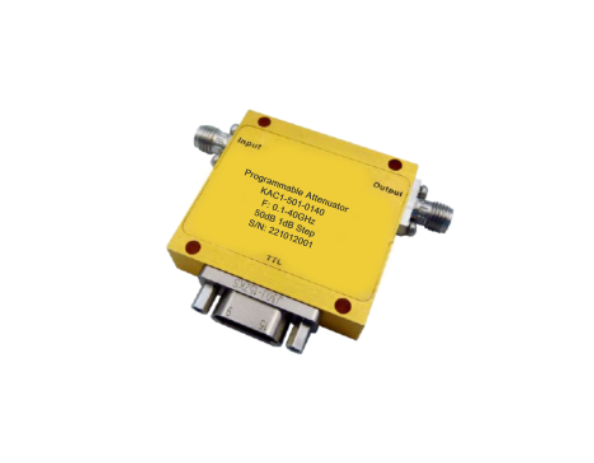

产品型号 | 频率范围 GHz | 最小值 | 典值型 dB | 最大值 |
KAC1-501-0140 | 0.1-40 | 1dB 步进 | - | 50 dB |
衰减精度 | 0.1-10 |
| ±4.0 |
|
10-18 |
| ±4.0 |
| |
18-26 |
| ±5.0 |
| |
26-40 |
| ±6.0 |
| |
插入损耗 |
|
| 5 dB |
|
控制位 |
|
| 6 Bits |
|
输入功率 |
| 16 dBm |
| 25 dBm |
驻波比 |
|
| 2.0 |
|
工作电压 |
|
| 5V |
|
工作电流 |
|
| 140 mA |
|
阻抗 | 50 Ω | |||
RF输入输出端 | 2.92(f) | |||
串口控制输出端 | 15 Pin Female | |||
串口控制输入端 | 15 Pin Female | |||
操作温度 | 0℃ ~ +50 ℃ | |||
储存温度 | -20℃ ~ +85 ℃ | |||

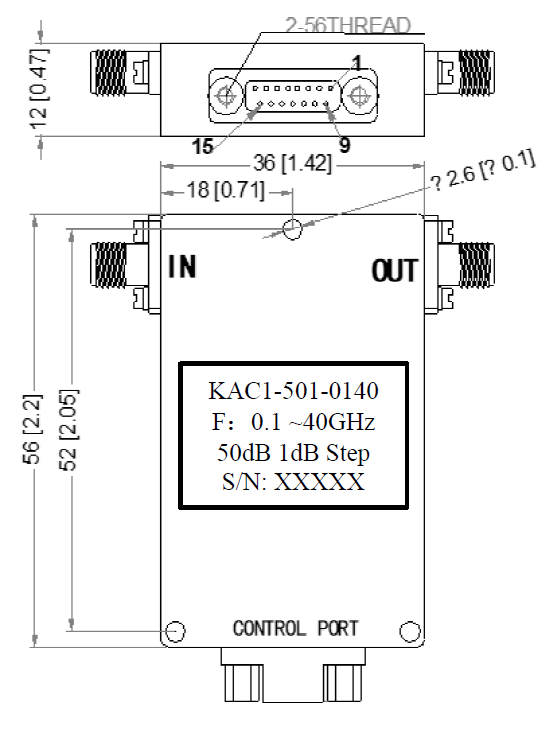

l 参考尺寸图：（单位：mm）
l 真值表：
Control Voltage Input | Attenuation State | |||||
C6 | C5 | C4 | C3 | C2 | C1 | |
0 | 0 | 0 | 0 | 0 | 0 | Reference IL |
0 | 0 | 0 | 0 | 0 | 1 | 1dB |
0 | 0 | 0 | 0 | 1 | 0 | 2dB |
0 | 0 | 0 | 1 | 0 | 0 | 4dB |
0 | 0 | 1 | 0 | 0 | 0 | 8dB |
0 | 1 | 0 | 0 | 0 | 0 | 16dB |
1 | 0 | 0 | 0 | 0 | 0 | 32dB |
1 | 1 | 1 | 1 | 1 | 1 | 63dB |
l 引脚定义：
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
+12v | -12v | GND | C1 | C2 | C3 | C4 | C5 |
9 | 10 | 11 | 12 | 13 | 14 | 15 |
|
C6 | NC | NC | NC | NC | NC | NC |
|
