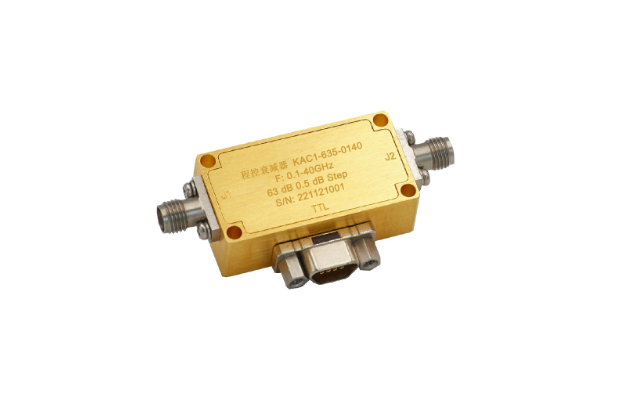

产品型号 | 频率范围 | 最小值 | 典值型 | 最大值 |
KAC1-635-0140 | 0.1-40 GHz | 0.5 dB 步进 | - | 63.5 dB |
衰减精度 | @ 15 dB |
| ±0.5 dB |
|
@ 31.5 dB |
| ±1.2 dB |
| |
@ 63.5 dB |
| ±4.0 dB |
| |
衰减平坦度 | @ 15 dB |
| ±0.5 dB |
|
@ 31.5 dB |
| ±1.7 dB |
| |
@ 63.5 dB |
| ±4.0 dB |
| |
插入损耗 |
|
| 9.5 dB |
|
输入功率 |
|
| 25 dBm | 28 dBm |
驻波比 | @ 0.1-20 GHz |
|
| 1.6 |
@ 20-40 GHz |
|
| 2.0 | |
工作电压 |
|
| +3.3 V/-3.3 V |
|
工作电流 |
|
|
| 20 mA |
逻辑控制 | “1”= on; “0”= off | |||
逻辑控制“0” |
| 0 |
| +0.8 V |
逻辑控制“1” |
| +1.2 V |
| +3.3 V |
设置时间 |
|
| 1 us |
|
阻抗 | 50 Ω | |||
RF输入输出端 | 2.92(f) | |||
控制接口 | D-sub 15 Pins Female | |||
材料 | 铝 | |||
表面处理 | 镀镍 | |||
重量 | 25 g | |||
温度范围 | -45℃ ~ +85 ℃ | |||

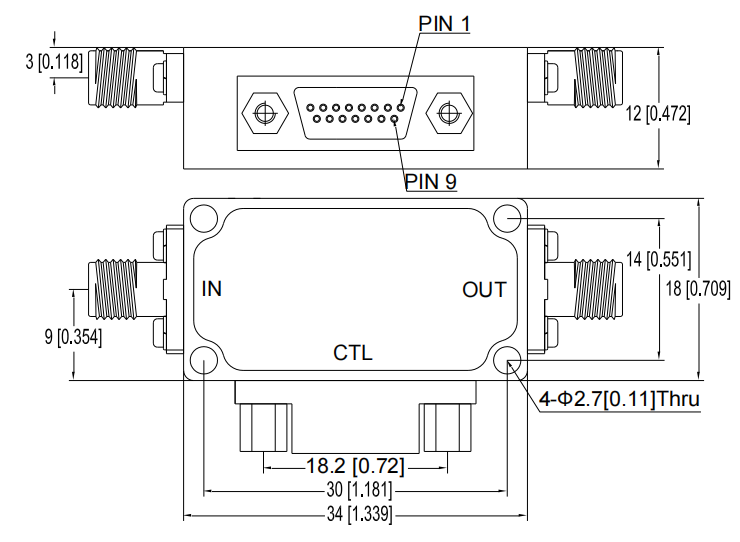

l 参考尺寸图:（单位：mm）
l 真值表:
Control Input TTL | Signal Path State | ||||||
C7 | C6 | C5 | C4 | C3 | C2 | C1 | |
0 | 0 | 0 | 0 | 0 | 0 | 0 | Reference IL |
0 | 0 | 0 | 0 | 0 | 0 | 1 | 0.5dB |
0 | 0 | 0 | 0 | 0 | 1 | 0 | 1dB |
0 | 0 | 0 | 0 | 1 | 0 | 0 | 2dB |
0 | 0 | 0 | 1 | 0 | 0 | 0 | 4dB |
0 | 0 | 1 | 0 | 0 | 0 | 0 | 8dB |
0 | 1 | 0 | 0 | 0 | 0 | 0 | 16dB |
1 | 0 | 0 | 0 | 0 | 0 | 0 | 32dB |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 63.5dB |
l 控制定义:
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
+3.3V | GND | -3.3V | C1 | C2 | C3 | C4 | C5 | C6 | NC | NC | NC | NC | NC | NC |
